Active Autowerke BMW M3 Tuning Software

***Before your order ships you MUST sign and return the Off Road Use Only Waiver available HERE. Please email, fax or take a photo of the completed form. You can email it to your sales rep or to info@activeautowerke.com and you can fax it to us at (305) 253-8921***

Active Autowerke's engineers have spent countless years fine tuning the E46 BMW M3 software. With on-going revisions and updates being made continuously both on our Race and Forced Induction programs, they have made possible the refinements needed for a true hi-performance street tune. Within specific ares of the MSS54 DME, the algorithms have been altered to achieve more usable horsepower and torque by re-working features such as the engine VANOS (dual variable valve timing), fuel and ignition maps and torque dampening. Other noticeable results are better warm starts, with a crisper and a more responsive throttle. So whether you enjoy you car as a daily driver or enjoy the weekend track outings our BMW M3 tune software will be able to accommodate your needs.

Through careful, detailed remapping to the entire DME we have been able to increase your S54's output by 14 HP and 11 ft lbs of torque on a stock BMW E46 M3 with factory settings for a normal street car. We also have different upgrades available for off-road use like sport button modification, SMG shift light feature to your 6 speed model, 02 Simulation, etc. The software is designed to operate with gasoline that has an average octane rating with full emissions to create a clean burning combustion with good AFRu2019s all within factory specifications. Paired with ouru00a0BMW M3 Sport Headeru00a0the gains are even more dramatic!

Customer Feedback

Robert Chang, 2013 BMWCCA National Champion..."Two years and a championship later, the car is still running a stock RACE tuned ECU. This engine has been running almost two years with no issues, which I find remarkable, considering the amount of track time it's seen and a rev limiter set at 8,600. Thanks to Active Autowerke, where engine-tuning is the one area I leave to them..."

Key Features:

-Part Throttle Remapping
-Specific Software available for CAIS
-Increase in Torque and Horsepoweru00a0
-Sport Button remains on when car is turned off

Dyno Run: Shift Light Feature:

Software Installation Options:

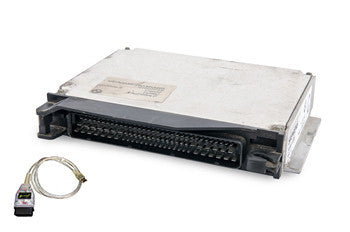

BMW performance tuning tool1.u00a0You can install / upload the software performance tune yourself with the aid of a laptop (you provide) and the SIMON 2. The SIMON 2 comes included at no extra charge when you purchase the Active Autowerke E46 M3 performance software. (Exception is the Z4M with the S54 motor).

2.u00a0Not comfortable about performing this task yourself as a DIY project. Let one of the Active Autowerke Dealers in your state perform this task for you. Recognized Dealer PAGEu00a0Look for Dealers highlighted in RED.

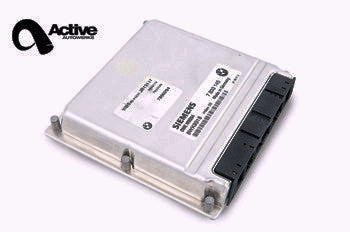

3. If you remove the DME from the E-BOX within the engine bay of your M3, then just pack it securely, insure the content for $1,000 replacement value, then ship either via Fedex or UPS to Active Autowerke. We will massage the tune, then turn around the package usually the same day via Fedex 2nd Day Air back to you (we pay the freight back to you) at a insured value of $1,000.00. Remember to add the ECU FORM with the the DME. (This shows who is sending the DME, your contact information and current mods on your M3)u00a0

Tuning for your Air Intake Options:

k&n drop in air filter for BMW E46 M3 to match Active Autowerke performance BMW tune1.u00a0If you own a K&N drop-in performance air filter. The CFM flow rate is much greater than the factory paper element. We have seen such improvements while running a factory/stock E46 M3 on our in house dyno. As such, we strongly believe that the performance tune should take into account the style of air intake installed on each specific M3. You will receive a specific tune to accommodate your specific air intake at no additional charge to you. Call us for your options.u00a0

K&N Air intake system to match the Active Autowerke BMW tune2.Same thing applied if you own a K&N #63 Air Intake System or AFE Intake System. These systems require that the factory mesh baffle within the factory air box be removed. As such, the air turbulence created is much different and can influence the CFM flow rate as well. We strongly believe that the performance tune should take into account the style of air intake installed on that specific M3. You will receive a specific tune at no additional charge to you.u00a0Call us for your options.u00a0

BMW CSL style intake to match with Active Autowerke BMW performance tune3.Having installed a CSL style intake system dramatically changes the air intake charge set-up. Not only is this radically different, but the software to operate with the CSL style is also different. You will need to run a Alpha N tune configuration.
There are also different configurations of CSL airboxes, from the genuine to aftermarket replicas. Please call an Active Autowerke Sale Associate about CSL and Alpha N configurations. There is an additional cost to run this set-up.
Tuning for your Header Options:

BMW headers for BMW E46 M3 to match Active Autowerke performance BMW tune1.Have BMW factory headers with BMW factory catalysts installed. Our tune was made primarily for this set-up. You will receive a specific tune to accommodate your header configuration at no additional charge to you. Call us for your options.

BMW headers for BMW E46 M3 to match Active Autowerke performance BMW tune2.Have BMW factoryu00a0headers installed on your M3, but configured by you to run without the catalysts for gains of additional horsepower. However, a 02 SENSOR FAULT CODE will be evident. We can satisfy this fault code through the software configuration.u00a0
NOTE: The vehicle can only be operated for OFF ROAD and /or RACING purposes ONLY and not be operated on highways and public roads that requires all necessary emission compliance to be intact.
You will receive a specific tune to accommodate your header configuration as well as satisfy the fault code. Just make the selection to reflect your header with the number of 02 sensor holes. Example, the factory header has four 02 sensor holes.Call us for your options.u00a0

BMW aftermarket headers for BMW E46 M3 to match Active Autowerke performance BMW tune3. Have BMW aftermarketu00a0headers installed on your M3, but configured by you to run without the catalysts for gains of additional horsepower. However, a 02 SENSOR FAULT CODE will be evident. We can satisfy this fault code through the software configuration.u00a0
NOTE: The vehicle can only be operated for OFF ROAD and /or RACING purposes ONLY and not be operated on highways and public roads that requires all necessary emission compliance to be intact.
You will receive a specific tune to accommodate your header configuration as well as satisfy the fault code.u00a0Just make the selection to reflect your header with the number of 02 sensor holes. Example, the factory header has four 02 sensor holes.Call us for your options.u00a0

BMW CSL headers for BMW E46 M3 to match Active Autowerke performance BMW tune4.Have BMW EURO CSL headers installed on your M3, but configured by you to run without the catalysts for gains of additional horsepower. However, a 02 SENSOR FAULT CODE will be evident. We can satisfy this fault code through the software configuration.u00a0

NOTE: The vehicle can only be operated for OFF ROAD and /or RACING purposes ONLY and not be operated on highways and public roads that requires all necessary emission compliance to be intact.
You will receive a specific tune to accommodate your header configuration as well as satisfy the fault code. Just make the selection to reflect your header with the number of 02 sensor holes. Example, the CSL headers has only two 02 sensor holes and not four.Call us for your options.u00a0

6 Speed Shift Light Options:

Shift light software option for BMW E46 M3 6 speedJust like the E46 M3 with SMG gearing, your BMW E46 M3 with 6 speed can now enjoy a Shift Light feature. Preview the video above showing how a 6 speed now has a shift light feature. We perform this upgrade through the software at no additional cost to you. Please call us to add your 6 Speed Shift Lights feature.

SMG CSL Gearbox Flash Options:

Quicker shifting on the BMW SMG with the CSL flash by BMW tuner, Active AutowerkeJust like the European version BMW E46 M3 CSL that has a crisper, more precise shifting on the SMG, so too can you enjoy a similar shifting experience and achieve even better gear changing times. Please call us to add your SMG CSL Gearbox Flash.

Software DATA Logging Options:

SIMON2 - Data Logger Our Data Logger gives you the capability to log data from your vehicle in real-time. It is simple to use and will allow for a more accurate and personalized remote tune. Data logger works with the SIMON 2 as a ADD-ON for only an additional cost of $59.00 to you. Delivered to you electronically via e-mail. LEARN MORE about Data Logger, then add to the shopping cart CHECKOUT.

Air Pump BY PASS Options:

Air Pump by pass for racing purposesIf you have a defective air pump, you may notice a check engine light on your dashboard, or may also notice the pump is consistently noisy for 30 seconds to 2 minutes after startup. Replacing this pump often quiets noisy startups, turns off check engine lights caused by certain codes, and keeps your vehicle running perfectly. One can expect a normal replacement cost to be in the $500.00 range.
Most racers prefer to eliminate this part for weight savings and create a cleaner engine bay layout.However, a 02 SENSOR FAULT CODE will be evident. We can satisfy this fault code through the software configuration.
NOTE: If this part is eliminated, the vehicle can only be operated for OFF ROAD and /or RACING purposes ONLY and not be operated on highways and public roads that requires all necessary emission compliance to be intact. Call us for your options.u00a0
