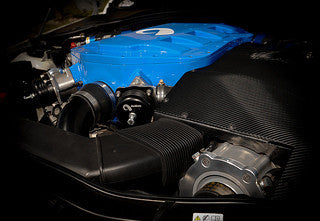

The advanced design and sleek features of the Active Autowerke Supercharger System include a front mount air-to-air intercooler system with a separate oil cooler for the supercharger unit's independent oil system. The Active Autowerke Supercharger Plenum replaces the factory air box and is designed to have an OEM-type look with custom finishes available at the customer's request. The Active Autowerke Supercharger Plenum has been designed with eight high-flow velocity stacks, and large three inch intercooler piping to supply cooled air.
The custom Active Autowerke Filter mounts to the supercharger unit and is enclosed in a custom intake box engineered to incorporate factory design while forcing cool air to the air box.

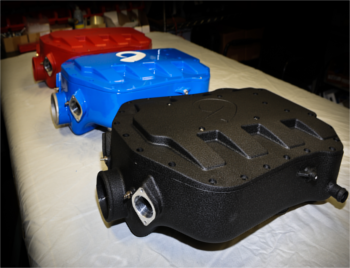

The standard finish on the Active Autowerke Supercharger Plenum is a matte wrinkle black, custom colors are also available for an additional cost.
The Active Autowerke Supercharger System is powered by a Rotrex C38-92 Supercharger Unit mounted with a custom CNCed bracket that uses a dedicated drive belt system, while eight high flow fuel injectors are used to supply the additional required fuel. Active Autowerke's Performance Software, available for 91-93 octane, race gas, and octane levels unique to other countries, is carefully calibrated, and is at the heart of the system to provide an unparalleled driving experience. Keeping within the factory's OBDII parameters, the Active Autowerke Supercharger System ensures consistency for everyday driving.
93 Octane/98 Ron or 91 Octane
HFC/No Cat Mid Section Recommended
Key Features:
- AA E9X M3 Supercharger Plenum with Eight High-flow Velocity stacks
- Rotrex C38-92 Supercharger
- AA Blow Off Valves & Bypass Valve
- Dedicated Belt Drive System (does not share belt with accessories)
- Eight-Rib Pulley System
- Eight High-capacity Bosch Motorsport Fuel Injectors
- AA Performance Software for the MSS60 ECU with available upgrades and off road options
- CNC Hard Anodized Brackets and Hardware
- AA Front-mount Air to Air Intercooler
- Independent Supercharger Oil Cooler
- Longlife Traction Fluid for Rotrex C38-92 Supercharger
- Cold Air Intake Box
- AA Oil Breather System
- New Oil Line with A/N Fitting System
- High Performance AA Spec Filter
- All mounting hardware9 (plumbing, hoses and clamps) included
- Detailed, step-by-step installation manual
- All installation hardware included
- 1 year warranty on SC kit components only.
- Any hi-performance modification may void your factory warranty, please check with your manufacturer.
Performance Specs:
- Boost: 8 psi
- Horsepower: 640 HP
- Torque: 413 Ft Lbs
- numbers may vary depending on weather,conditions,etc
Application for all 2008-2013 E90, E92,E93 M3 models. All supercharger systems must be installed by an approved Active Autowerke dealer to sustain all warranties. Intended for off street use.
LEGAL in California only for racing vehicles.u00a0
